Dielectric Liquid immersed

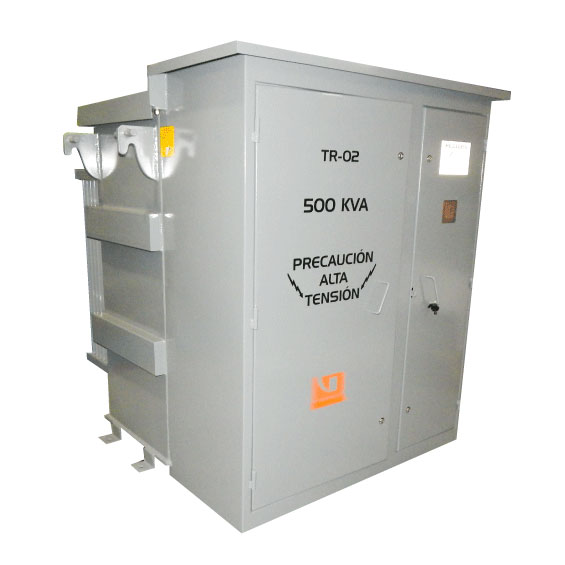

PAD MOUNTED TRANSFORMER O'RING OR RADIAL OPERATION
Advantages
Transformers designed to optimize the available space by up to 50%.
Adequate coordination of protections and ease of replacement.
Reduces investment, installation and energy consumption costs.
Ease of operation on all devices.
Reduction of risks and greater security for its maintenance.
They have an anticorrosive treatment that gives them a long useful life.
The tanks are provided with an independent bracket welded to the transformer that serves as circuit protection, both high and low voltage, with independent doors each.
It is provided with a mechanical safety interlock, which only allows the high voltage compartment to be opened by first opening the low voltage compartment.
The high voltage accessories are of the premolded elastomeric type for operation under load and dead front, which allows totally safe operation.
The power supply is done by means of a load disconnector and bayonet sets with their respective fuses. We manufacture them in insulation voltage levels from classes 15, 25 to 34.5 kV. Manufactured under the current NMX-J-285-ANCE standard.
Electrical Features
Wide range of voltage regulation.
To operate with non-linear loads, under K factor as requested.
Continuous supply of its nominal capacity.
Impedance according to standards or special requirements.
Thermal or thermomagnetic switch for low voltage (on request up to 150 kVA).
Low noise level (core at nominal voltage not saturated).
Construction Features
May have any of the standard or high flash point dielectric fluids.
The construction of the tank is dead front for the optimization of spaces.
Designed to operate from -10°C to 40°C and altitudes up to 2600 m.
Hermetic for outdoor installation: humid, saline environments, contamination by hydrocarbons, lead and ozone.
Copper-copper windings.
Zero leaks: hermetic tank for the preservation of the insulating liquid.
Low voltage spade type bushings and terminals, made of high conductivity copper.
Well-type or bolt-type bushings for medium voltage.
